Open Aviary

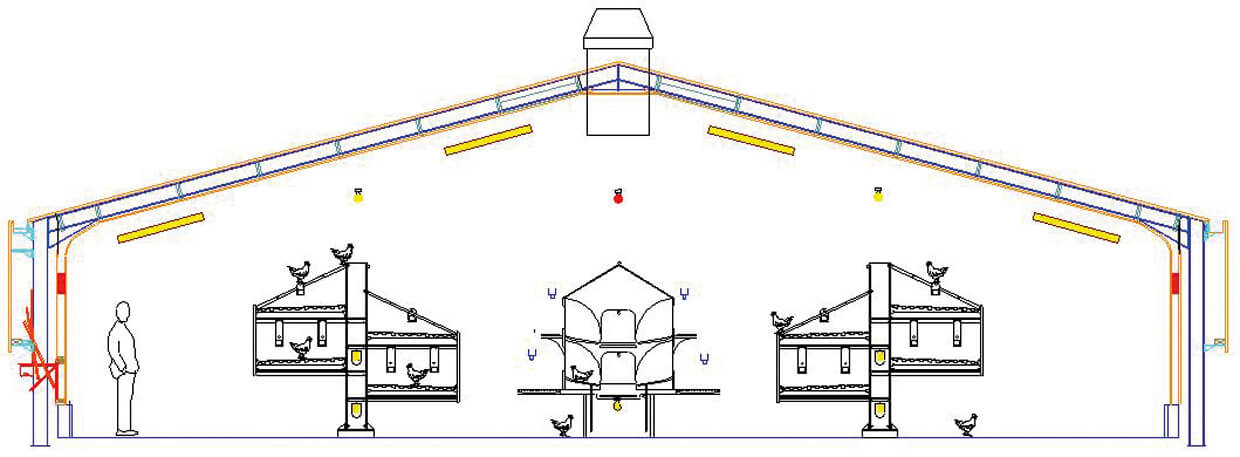

System Design

• Proven and engineered to last
• Replicates tree - natural for bird behavior
• No need for birds to come out of the system to go up / down
• Birds like to sleep, eat, drink, lay – designed to match this
• Adaptable to suit any building, refurbs or conversions + use of existing nests

Low & Open

• All birds can be seen and managed from ground level
• No need to climb on the system on daily basis – important for H&S
• Can see right through from litter to nest (unlike tower systems)
• Easy to ventilate and maintain good litter (no need for positive pressure system)

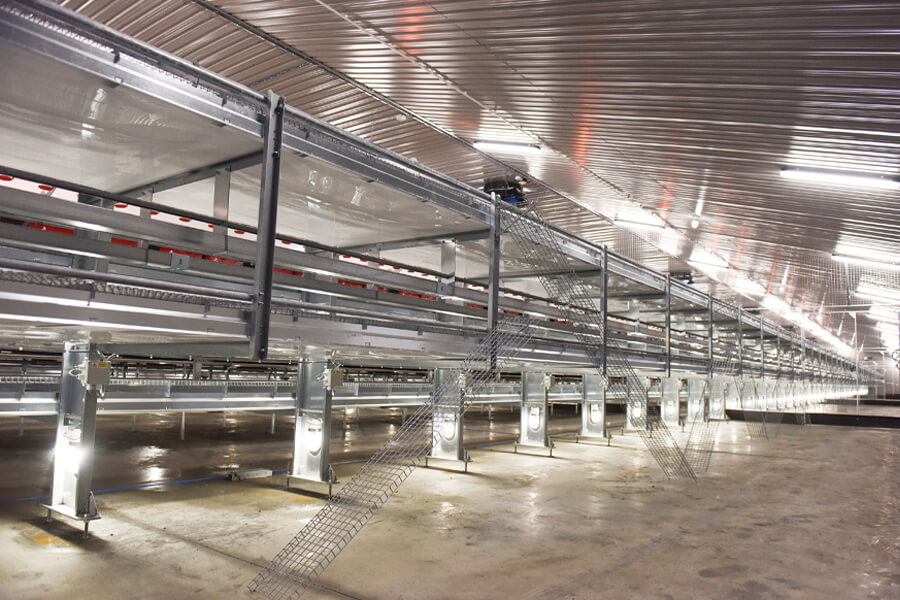

Centre Cantilever Leg

• Very little fixed to the floor = cleaning easier - other systems typically have legs every 5 feet
• Can use offset bucket arm to clean out with machine

• Simple and robust construction

  • - Heavier gauge steel = longer life
  • - U channels – facing out - designed for easier cleaning & control of insects

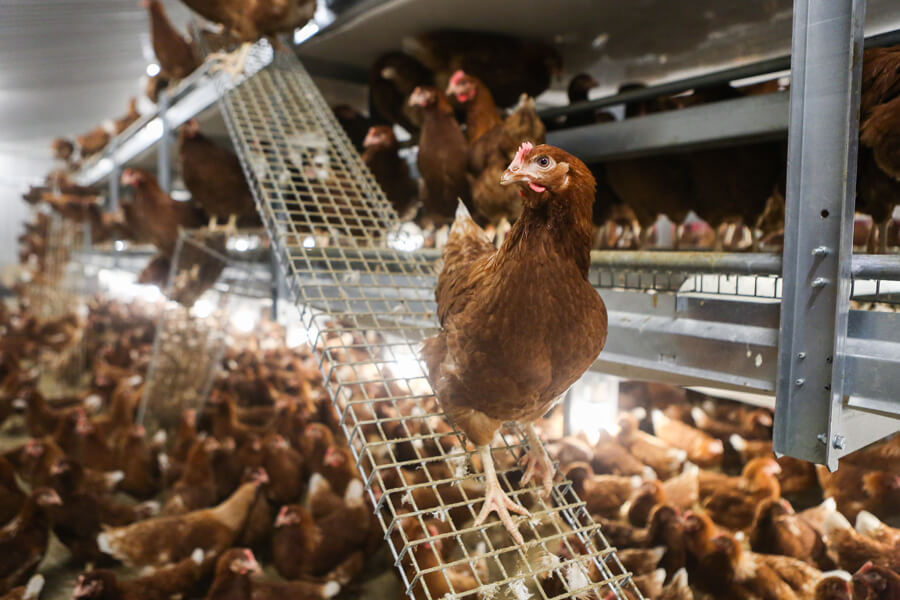

Stress Free Movement

• Birds can move easily throughout the system
• Multiple points of access – reduces congestion & assists with early training
• Use ramps and hop between levels – minimizes leg & keel bone injuries
• Easy access to nests – reduces potential for mislaid eggs
• Reduced stress = better feather wear, reduced mortality, improved productivity

Narrow Muck Belt Width - 3'11''

• Easy to reach under and manage floor area
• Easier to maintain and track on longer shed lengths

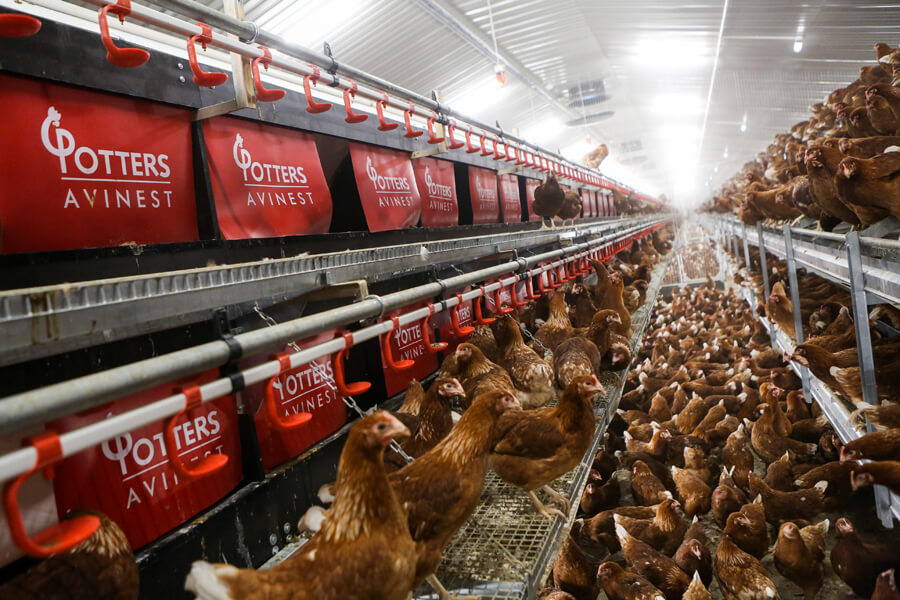

Nest Boxes

• Accessible from both tiers of system – even distribution of eggs
• Improves egg quality and reduces damage & smothers
• 0.7” marine ply + phenolic faced coating – engineered to last
• Minimal temperature changes & reduced noise compared with metal nests
• Original AstroTurf (3 yr warranty) – perforated to allow muck & dust to fall through
• Top nest floor has auto clean tray underneath to capture muck & dust

Egg Belt

• One large egg belt with heavy duty drives
• Only one transfer point minimizing egg seconds
• Dished and supported longitudinally to minimize damaged eggs

Lighting

• Every 4’11” underneath all manure belts – keeps birds active & reduces floor eggs

• Can use offset bucket arm to clean out with machine
• LED bulbs - all dimmable & inter changeable throughout system
